Skylight
Series

Transform Singapore rooftops, basement lightwells, and sunshine rooms with EZZO electric skylight systems. Top-hung, sliding, and pan configurations — all motor-driven, precision-welded, and finished in 8 architectural colours.

6
Skylight models
3
Glass configs
8
Colour options
6063-T5
Aluminium alloy

Product Reference

Skylight Systems — Installed Worldwide

EZZO's skylight series is manufactured on the EZZO platform — robot seamless welding, 304 stainless steel tracks, and chain/pushrod/tubular motor options specified across luxury residential and commercial projects globally.

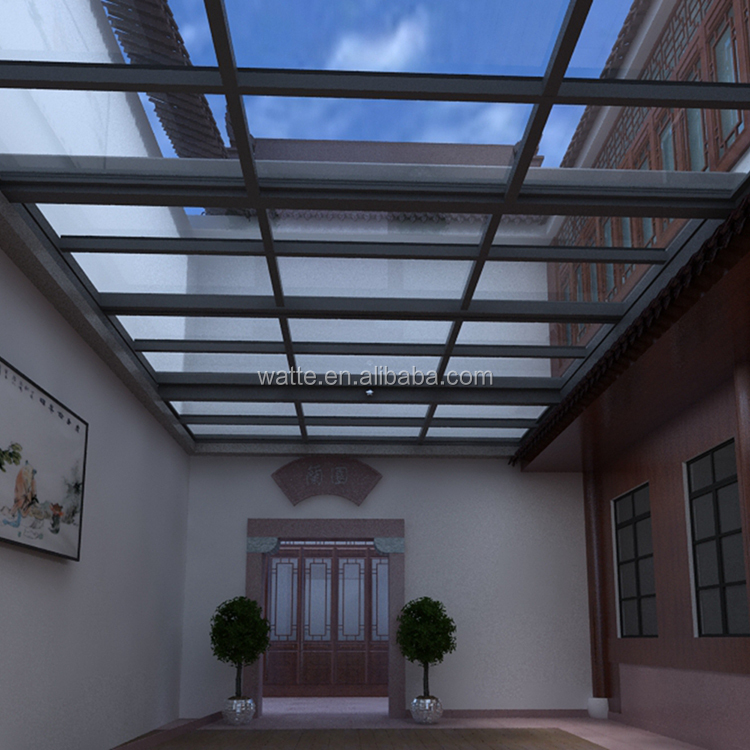

Motorised aluminium sunroof skylight system shown from below, daylight streaming through double-glazed panels
Top-Hung Sunroof System

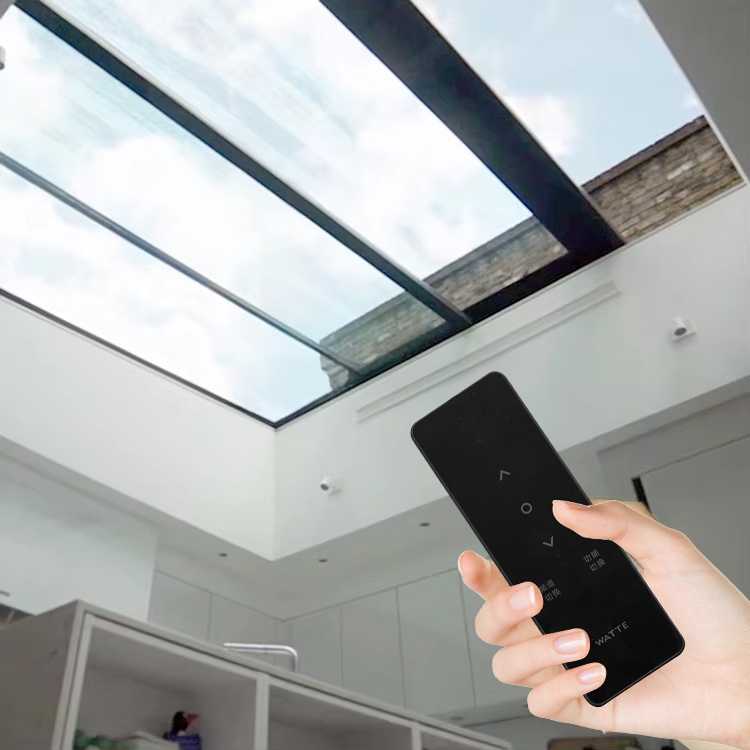

Electric sliding skylight product rendering showing track system and motorised operation
Electric Sliding Skylight
Skylight installed on a tiled residential roof, exterior view showing slim aluminium frame
Roof Installation

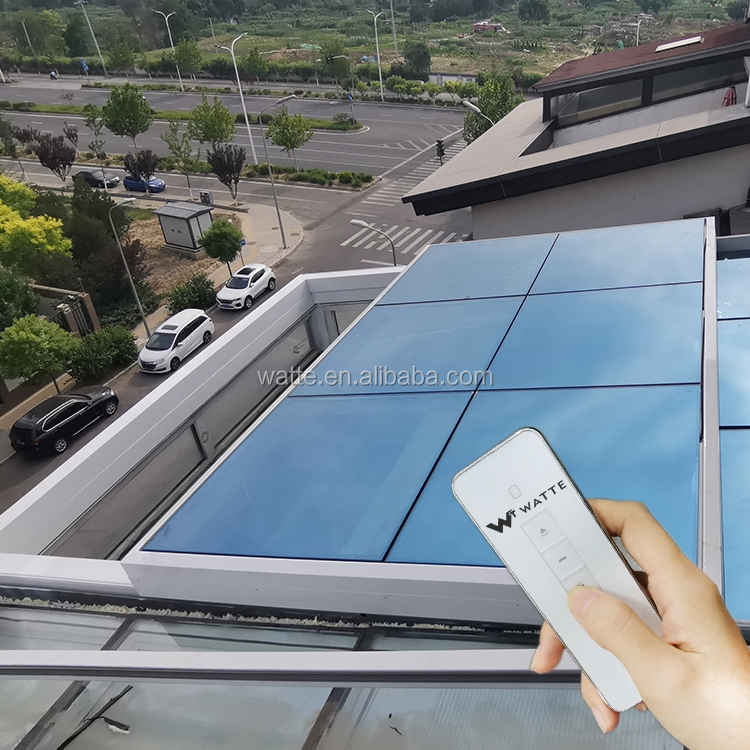

Close-up detail of a skylight frame showing thermal break profile, drainage channel and weatherproof sealing
Frame Detail & Sealing
Skylight opened to ventilate an interior space, daylight flooding through
Ventilation Mode
6 Models
SR-R30 · SR-R90 · SR-S110 · SR-S85 · SR-128

Top-Hung Series

SR-R30

Narrow Side Sunroof

Chain Motor

Applicable Spaces

Rooftop openings
Lighting wells & basement courts
Sunshine rooms & sunrooms

Opening Method

Electric upper suspension
Outward-opening operation
Patented control system
Mute waterproof switch

Construction & Finish

Robot seamless welding
Electrostatic powder spray
6063-T5 Aluminium alloy
Auto-grade sealant

Standard Configuration

Chain motor drive
Mute waterproof switch
Integrated LED light strip
Auto-grade perimeter sealant

Glass Options

5mm + 27Ar + 5mm
5mm + 0.76pvb + 5mm
5mm + 22Ar + 5mm + 0.76pvb + 5mm

Finish & Colour

8 standard colour options
Ys804 → Ys827 range
Electrostatic powder coat

Distinctive Features

Chain Motor

Precision drive engineered for narrow-profile skylight applications.

Patented Control System

Proprietary electronics with mute waterproof switch for silent operation.

LED Light Integrated

Built-in ambient lighting strip for night-time operation and ambiance.

Automobile-Grade Sealant Strip

Automotive-quality perimeter weatherproofing for tropical conditions.

Robot Seamless Welding

No visible joints — factory-welded for consistent structural performance under sustained load.

8 Colour Options

From Ys804 Ivory through Ys827 Charcoal — 8 architectural finishes.

Top-Hung Series

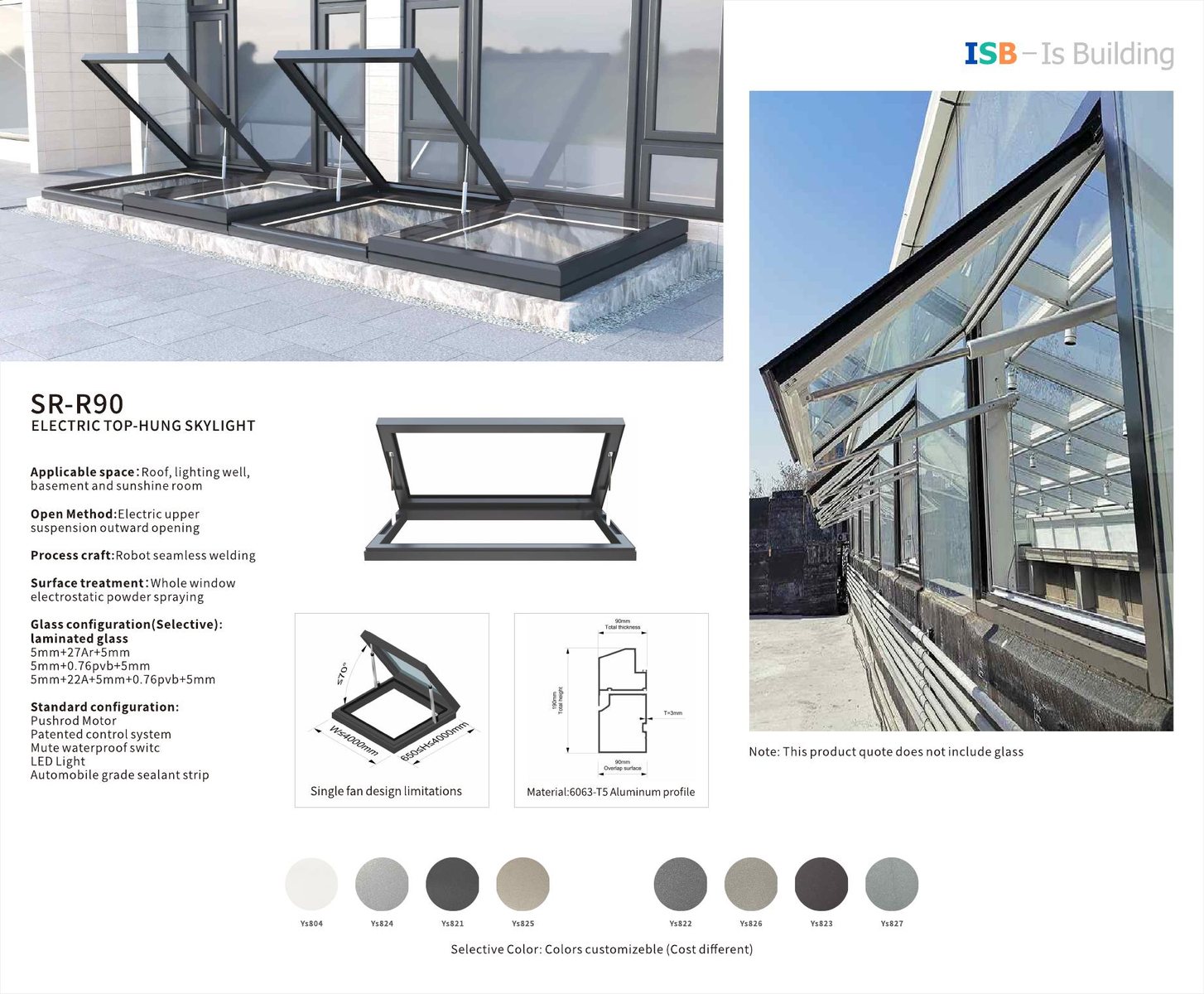

SR-R90

Electric Top-Hung Skylight

Pushrod Motor

Applicable Spaces

Rooftop openings
Lighting wells & basement courts
Sunshine rooms & sunrooms

Opening Method

Electric upper suspension
Outward-opening operation
Pushrod motor — smooth linear force

Construction & Finish

Robot seamless welding
Electrostatic powder spray
6063-T5 Aluminium alloy

Difference vs SR-R30

Pushrod motor vs chain motor
Larger sash aperture capacity
Quieter linear actuation

Glass Options

5mm + 27Ar + 5mm
5mm + 0.76pvb + 5mm
5mm + 22Ar + 5mm + 0.76pvb + 5mm

Finish & Colour

8 standard colour options
Ys804 → Ys827 range
Electrostatic powder coat

Distinctive Features

Pushrod Motor

Simpler linear mechanism ideal for larger skylight apertures.

Patented Control System

Proprietary waterproof electronics for reliable all-weather operation.

Robot Seamless Welding

Factory-welded frame — no visible joints, consistent structural performance.

LED Light Standard

Integrated LED lighting strip included as standard configuration.

Same 3 Glass Options

Insulated, laminated, or triple acoustic — same configurations as SR-R30.

Whole Window Electrostatic Powder Spray

Uniform UV-stable finish applied across the entire window profile.

Sliding Series

SR-S110

Medium Sized Sliding Skylight

DC Geared Motor

Applicable Spaces

Basement & daylighting wells
Patio & alfresco areas
Swimming pool surrounds
Sunshine rooms & rooftops

Opening Method

Electric translation (sliding)
304 SS solid bearing pulley
45# precision gear rack
304 SS track system

Safety & Construction

Anti-falling device fitted
Solid steel corner code
Welding + glue filling corner code splicing

Drive System

DC geared motor
Smooth low-noise operation
Consistent torque across travel

Glass Options

5mm + 27Ar + 5mm
6mm + 1.52pvb + 6mm
5mm + 22Ar + 5mm + 0.76pvb + 5mm

Profile Material

6063-T5 Aluminium alloy
Electrostatic powder spray
8 colour options available

Distinctive Features

DC Geared Motor

Most powerful drive in the skylight range — consistent torque across travel.

304 Stainless Steel Solid Bearing Pulley

Marine-grade corrosion resistance for Singapore coastal and poolside homes.

Solid Steel Reinforced Corner Code

Welded and glue-filled splicing for maximum corner rigidity.

45# Solid Gear Rack

Anti-corrosion treated steel rack engineered for tropical humidity resistance.

Anti-Falling Device

Critical safety mechanism — prevents glass panel from falling during operation.

Pool & Patio Rated

Applicable to swimming pools and patios where other skylights aren’t recommended.

Pan Sliding Series

SR-S85 — Trackless

Trackless Small Pan Skylight

Tubular Motor

Applicable Spaces

Rooftop openings
Lightwells & basement courts
Basement level openings
Sunrooms

Opening Method

Electric translation (sliding)
Tubular motor — concealed in profile
Trackless guide system

Construction

Robot seamless welding
6063-T5 Aluminium alloy
Electrostatic powder spray

Trackless Advantage

No exposed track rail
Cleaner roofline aesthetic
Easier drainage management

Glass Options

5mm + 27Ar + 5mm
6mm + 1.52pvb + 6mm
5mm + 22Ar + 5mm + 0.76pvb + 5mm

Finish

8 colour options
Electrostatic powder coat

Distinctive Features

Tubular Motor

Integrated drive tucked invisibly inside the frame profile.

Trackless Design

No exposed rail — cleaner roofline aesthetic, easier drainage maintenance.

Robot Seamless Welding

Factory-precision assembly with no visible joints.

Three Glass Configurations

Insulated, thick laminated, or triple acoustic — three performance tiers.

Electrostatic Powder Coating

Durable architectural-grade finish across all 8 colour options.

Pan Sliding Series

SR-S85 — Railed

Railed Small Pan Skylight

Tubular Motor

Applicable Spaces

Rooftop openings
Lighting wells
Sunlight rooms

Opening Method

Electric translation (sliding)
Tubular motor — concealed in profile
Guided rail system

Rail Advantage

Precise alignment over full span
Suited to heavier glass loads
Enhanced lateral stability

Glass Options

5mm + 27Ar + 5mm
5mm + 0.76pvb + 5mm
5mm + 9Ar + 5mm + 0.76pvb + 5mm

Note: acoustic layer uses a 9mm argon gap (vs 22mm on other models) — optimised for slimmer profile geometry.

Construction & Finish

6063-T5 Aluminium alloy
Electrostatic powder spray
8 colour options available

vs SR-S85 Trackless

Rail guide vs trackless glide
9Ar acoustic gap (not 22Ar)
Spaces: roof / well / sunroom only

Distinctive Features

Tubular Motor + Traditional Rail

Proven guided mechanism for heavier glass panel loads.

Unique 9Ar Glass Option

5+9Ar+5+0.76pvb+5mm configuration optimised for slimmer profile geometry.

Mute Waterproof Switch

Silent operation maintained even during heavy tropical rainfall.

Robot Seamless Welding

Factory-precision assembly — no visible joints, consistent structural performance.

Automobile-Grade Sealing

Automotive-quality weatherproof sealant strip around the full perimeter.

Electric Rising

SR-128

Electric Rising Skylight

DC Geared Motor

Applicable Spaces

Flat roof openings
Daylighting wells
Basement level openings
Patio & alfresco areas
Sunshine rooms

Opening Method

Electric level rise (panel rises vertically)
Then slides horizontally — unique dual motion
DC geared motor drive
Patented control system
Mute waterproof switch

Standard Configuration

DC geared motor
Integrated LED light strip
Automobile-grade sealant strip
Ring diamond gauze net (perimeter insect screen)

Construction & Finish

Robot seamless welding
Whole window electrostatic powder spraying
6063-T5 Aluminium alloy

Glass Options

5mm + 27Ar + 5mm
6mm + 1.52pvb + 6mm
5mm + 22Ar + 5mm + 0.76pvb + 5mm

Finish & Colour

8 standard colour options
Ys804 → Ys827 range
Electrostatic powder coat

Distinctive Features

Electric Level Rise

Panel rises vertically before sliding — unique dual-motion mechanism in the range.

DC Geared Motor

Powerful and reliable drive mechanism for smooth consistent operation.

Ring Diamond Gauze Net

Perimeter-wrapped insect screen — exclusive to SR-128, not found on any other model.

LED Light Integrated

Built-in ambient lighting for after-dark operation and atmosphere.

Patented Control

Mute waterproof switch with auto rain sensor — closes automatically in rain.

Flat Roof Optimised

Best-suited skylight for modern flat-roof residential architecture.

Side by Side

All Skylights Compared

Key specifications across the full EZZO skylight range to help you select the right model for your project.

Model Motor Type Open Method Acoustic Glass Gap Applicable Spaces Process Unique Feature
SR-R30
Narrow Side Sunroof		 Chain Motor Top-hung outward 22Ar Roof · Lightwell · Basement · Sunshine room Robot seamless weld LED light + patented control + auto-grade sealant
SR-R90
Electric Top-Hung		 Pushrod Motor Top-hung outward 22Ar Roof · Lightwell · Basement · Sunshine room Robot seamless weld Linear pushrod — quieter & larger aperture
SR-S110
Medium Sliding		 DC Geared Motor Electric sliding 22Ar Basement · Patio · Pool · Daylighting well · Roof Weld + glue corner code 304 SS pulley · 45# gear rack · anti-fall device
SR-S85 Trackless
Small Pan		 Tubular Motor Electric sliding 22Ar Roof · Lightwell · Basement · Sunroom Robot seamless weld No exposed track — clean roofline
SR-S85 Railed
Small Pan		 Tubular Motor Electric sliding 9Ar (slim gap) Roof · Lighting well · Sunlight room Robot seamless weld Rail guide for lateral stability & heavier loads
SR-128
Electric Rising		 DC Geared Motor Rise then slide 22Ar Flat roof · Lightwell · Basement · Patio · Sunshine room Robot seamless weld Electric level rise + ring diamond gauze net

Glass Technology

Three Glass Configurations

Every EZZO skylight is available in three distinct glass builds, each addressing different performance priorities for Singapore's tropical climate.

Standard Insulated

5mm + 27Ar + 5mm

Two panes of tempered glass separated by a 27 mm argon-filled cavity. Argon's lower thermal conductivity reduces conductive heat transfer through the IGU and, with an appropriate LOW-E coating, helps limit solar heat gain. A practical balance of clarity, cost and thermal performance for residential skylight applications, subject to orientation and consultant specification.

All 6 models Thermal insulation Standard spec

Laminated Safety

5/6mm + 0.76/1.52pvb + 5/6mm

A PVB (polyvinyl butyral) interlayer bonds two glass panes together. On impact, the glass cracks but the interlayer holds fragments in place — critical for overhead glazing. Thicker 1.52mm PVB and 6mm glass (SR-S110, SR-S85 Trackless) gives greater robustness; thinner 0.76mm PVB on top-hung models.

Overhead safety critical Impact resistance Fragment retention

Triple Acoustic

5mm + 22/9Ar + 5mm + 0.76pvb + 5mm

Three-layer system combining insulating argon cavity with a laminated inner pane. Delivers both thermal performance and acoustic dampening — reducing tropical rain noise on the roof and traffic sound from nearby roads. The 22Ar cavity on top-hung and sliding skylights provides maximum performance; the SR-S85 Railed uses a 9Ar cavity for its slimmer profile.

Thermal + acoustic Rain noise reduction All 6 models

Finish & Colour

8 Architectural Colours

All EZZO skylights are finished in electrostatic powder coat — a process that builds a durable, corrosion-resistant skin ideal for Singapore's humid equatorial climate.

Ys804 Pearl White
Ys824 Warm Sand
Ys821 Silver Grey
Ys825 Taupe Bronze
Ys822 Slate
Ys826 Dark Charcoal
Ys823 Deep Brown
Ys827 Matte Black

Colour swatches are representative. Request a physical sample at our showroom for accurate colour matching to your interior palette.
